As the most widely used mobile communication standard globally, GSM has demonstrated remarkable vitality since its commercial launch in the 1990s. Whether in Europe, where it originated, or in emerging markets like Asia and Africa, the GSM system boasts a mature and comprehensive industry chain with a vast user base. It covers systems, terminals, equipment, software, and testing. With the introduction of GPRS and EDGE technologies, which enhance data capabilities, GSM is expected to coexist with 3G standards for many years to come. Its advantages include extensive network coverage, reliable communication quality, and cost-effective pricing.
Since mobile terminals are the products that directly interact with users, factors such as price, performance, size, and power efficiency are crucial when consumers make purchasing decisions. Therefore, when manufacturers evaluate different design solutions, integration, performance, and power consumption become key considerations.
At the heart of any mobile terminal are the RF chip and the baseband chip. The RF chip handles radio frequency transmission and reception, frequency synthesis, and power amplification, while the baseband chip manages signal processing and protocol handling. Early GSM devices used discrete components for the RF section, typically requiring over 70 chips, resulting in larger sizes and higher costs. However, with the advancement of CMOS RF technology in the late 1990s, it became feasible to produce highly integrated RF chips using processes compatible with digital circuits, marking a shift toward more compact and efficient designs.
RDA6205 Chip Basic Characteristics
The RDA6205 is a high-performance, fully integrated CMOS GSM transceiver chip developed by RADICO Microelectronics, available in a compact 5mm × 5mm package. It integrates an LNA (Low Noise Amplifier), mixer, filter, ADC (Analog-to-Digital Converter), DSP (Digital Signal Processor), PLL (Phase-Locked Loop) frequency synthesizer, and an analog baseband interface. This integration allows for the construction of a complete RF subsystem with minimal external components, enabling seamless communication with various mainstream baseband chips through its built-in universal analog baseband interface.
As a fully integrated GSM RF transceiver, the RDA6205 delivers exceptional RF performance. Its receiving sensitivity reaches -108dBm, significantly exceeding the GSM standard of -102dBm. Additionally, its transmission spectrum ACPR at 400kHz reaches -70dBc, offering a 3–5dB improvement over similar products.
The RDA6205 also supports digitally compensated crystal oscillators (DCXO), making the system highly resistant to frequency drift caused by temperature changes. This ensures compliance with the stringent GSM requirement of 0.1ppm. Traditionally, this level of stability required expensive temperature-compensated crystal oscillators (TCXO), but the RDA6205 eliminates this need.
How the RDA6205 Chip Works

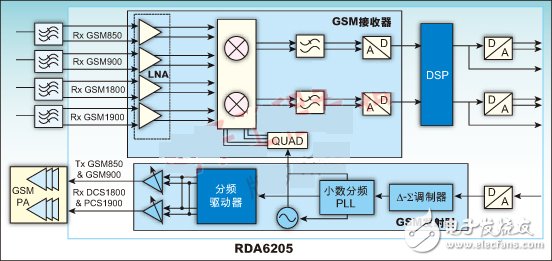

Figure 1 shows the block diagram of the RDA6205.
**Figure 1: Functional Block Diagram of the RDA6205**
When operating in receive mode, the RDA6205 converts incoming RF signals into a baseband signal of consistent intensity before sending it to the baseband chip. Weak RF signals enter through the differential port and first pass through the LNA, which amplifies the signal by 20dB with minimal noise addition. This reduces the noise requirements for other parts of the receiving chain. The signal then goes through a quadrature down-converting mixer, converting it to a near-zero intermediate frequency of 100kHz. A complex bandpass filter centered at 100kHz is used to remove out-of-band interference. The filtered signal is then converted into a digital format via a high-precision delta-sigma ADC.
The RDA6205 features a powerful embedded DSP unit, which digitally downconverts, cancels DC offsets, and applies frequency-selective filtering to the digital signal. The processed signal is then sent to the baseband chip's analog interface via a flexible programmable DAC.
The entire receive path gain is adjustable, providing a maximum gain range of over 100dB. With the AGC strategy from the baseband chip, the RDA6205 can handle signals ranging from -102dBm to -15dBm while maintaining a strong signal-to-noise ratio.
In transmit mode, the analog baseband signal from the baseband chip is converted into an RF signal to drive the RF front-end power amplifier (PA). Since GSM uses constant-envelope modulation like GMSK, all information is carried in the phase domain. Therefore, the RDA6205 employs a Direct Modulation Transmitter architecture.
The baseband signal is first sampled by the ADC within the RDA6205, and the phase modulation information is extracted, differentiated, and superimposed onto the carrier frequency generated by the delta-sigma PLL. The resulting modulated RF signal is then amplified and driven to a 50Ω power amplifier.
By adopting an advanced transmission structure, the RDA6205 achieves an excellent emission spectrum, with an ACPR index at 400kHz that is 3–5dB better than conventional schemes.
RDA6205 Chip Application

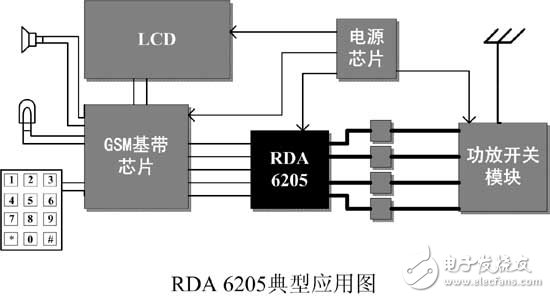

As shown in Figure 2, the RDA6205 works with a variety of mainstream baseband chips to provide a complete GSM solution, enabling the design of compact, high-performance, and low-cost mobile terminals.
**Figure 2: Typical Application Diagram of the RDA6205**
Thanks to its high integration, the RF part of the terminal solution consists only of an RF antenna, a power amplifier switching module, an RF surface acoustic wave (SAW) filter, and a few additional components. This not only reduces component costs but also simplifies the design of the RF PCB.
Moreover, compared to traditional superheterodyne architectures, the RDA6205-based GSM terminal benefits from reduced RF component count and higher integration. The RF signal from the antenna passes through a front-end switch and enters the RDA6205 chip directly. All analog signal processing occurs internally, minimizing the impact of interference on the PCB and greatly improving the system’s anti-interference performance.
Traditional superheterodyne designs require IF filters and other peripheral components, which limit PCB space and increase susceptibility to interference on the off-chip PCB. This leads to higher design and manufacturing complexity, potentially reducing production yields.
With the growing demand for multimedia applications such as FM, DVB, MP3, and MP4, and the increasing need for smaller, more functional devices, the fully integrated RDA6205 is well-positioned to shine in the future mobile market.
