There are several common motor starting methods used in industrial applications. Each method has its own advantages and limitations depending on the system requirements and load conditions.

1. Direct On Line (DOL) Starting

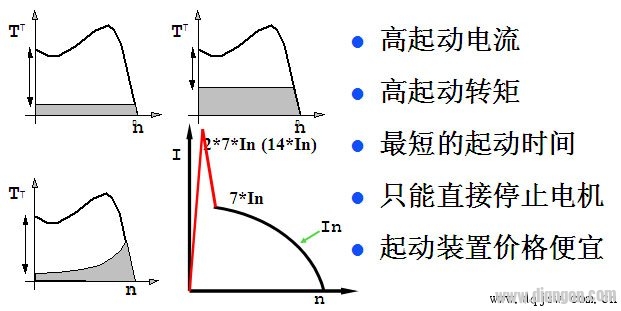

Direct starting current and torque

This is the simplest method where the motor is directly connected to the power supply. It results in a high inrush current and torque, which can cause voltage fluctuations and mechanical stress on the motor and connected equipment.

2. Star-Delta (Y/Δ) Starting

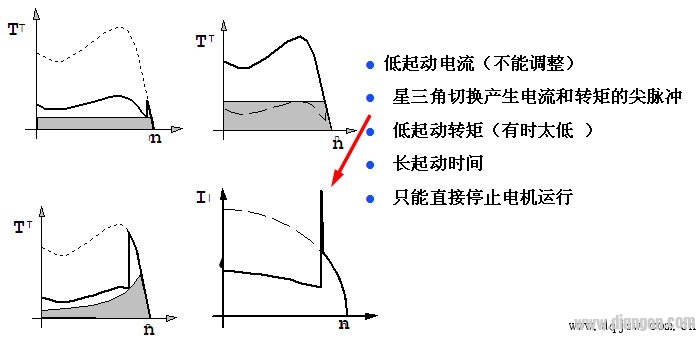

Squirrel cage motor star-delta start

This method reduces the starting current by initially connecting the motor in a star (Y) configuration, then switching to delta (Δ) once the motor reaches a certain speed. It's commonly used for squirrel-cage motors and helps minimize electrical and mechanical stress during startup.

3. Autotransformer or Tap Transformer Starting

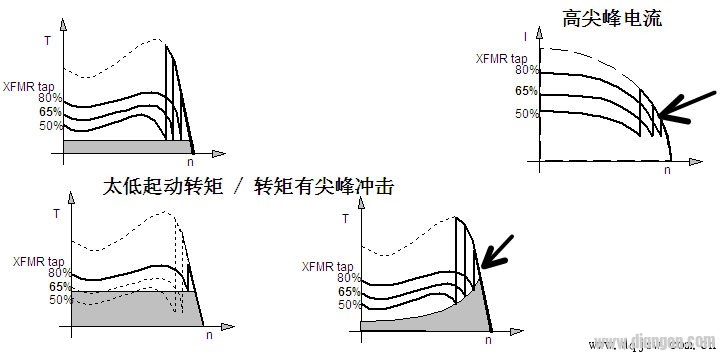

Tap transformer start

This technique uses an autotransformer to reduce the voltage supplied to the motor during startup, thereby lowering the inrush current. It offers more control over the starting process compared to DOL or star-delta methods.

4. Soft Starter Starting

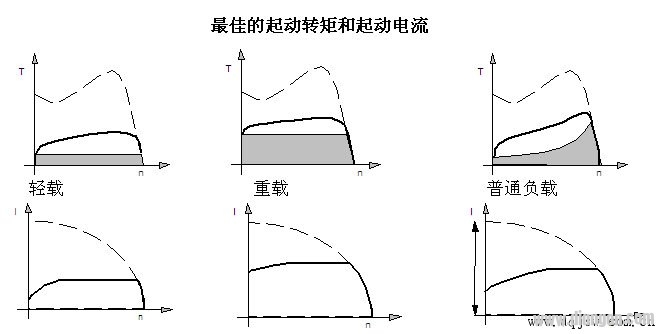

Soft starter to start

A soft starter gradually increases the voltage applied to the motor, allowing it to accelerate smoothly without sudden spikes in current or torque. This method is ideal for protecting both the motor and the connected machinery from mechanical wear and electrical disturbances.

Choosing the right starting method depends on factors such as motor size, load type, and system stability. Understanding these options helps engineers make informed decisions to optimize performance and prolong equipment life.
