The TDA2040 is a high-performance monolithic integrated audio amplifier designed for use in Class AB configurations. This IC offers multiple protection features, including built-in short-circuit protection and thermal shutdown, making it highly reliable for various applications. It can be powered by a single supply voltage, which simplifies the design and makes it ideal for automotive and portable audio systems. The amplifier is compatible with speakers ranging from 8 to 12 ohms, providing flexibility in system integration.

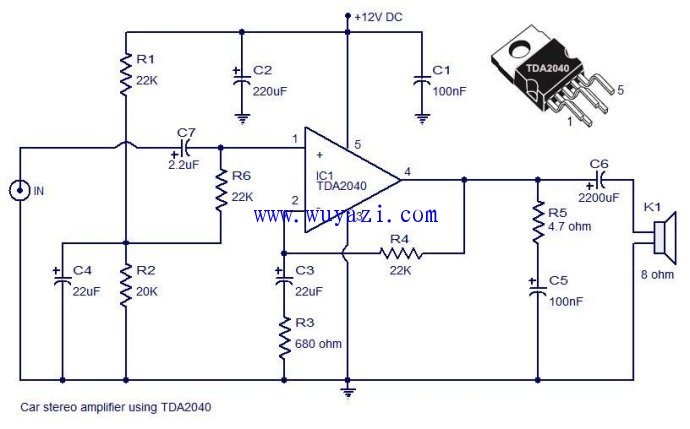

In this circuit, the TDA2040 is connected directly to the car's 12V power line, ensuring stable operation within typical vehicle electrical environments. Capacitor C7 serves as an input DC decoupling component, preventing any unwanted DC voltage from reaching the amplifier. Resistor R4 provides feedback to control the gain and stability of the circuit. To ensure high-frequency stability and prevent oscillations, resistor R5 and capacitor C5 form a compensation network. Additionally, capacitor C6 is used to couple the output signal from the IC to the speaker, while capacitors C1 and C2 act as power supply filters, smoothing out any voltage fluctuations and improving overall sound quality.
Car power amplifier circuit diagram notes: This circuit is commonly used in car audio systems due to its efficiency, ease of implementation, and robust performance under varying conditions. Understanding the role of each component helps in troubleshooting or modifying the design for specific applications. Whether you're building a custom amplifier or working on an existing system, knowing how these components interact is essential for achieving optimal results.
